Explore Seaory S16 card printer functions

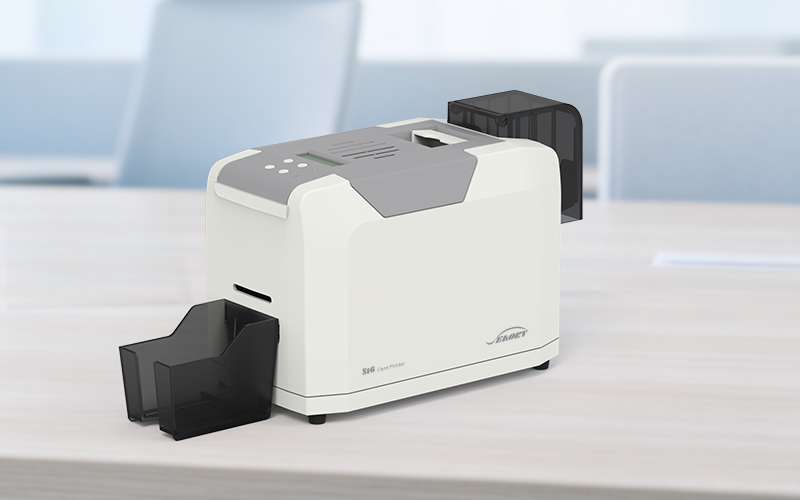

The Seaory S16 is a full-featured PVC ID card printer for organizations printing a medium or large number of cards on a regular basis. It is a great solution for printing single-sided government ID credentials, student ID cards, corporate ID cards, membership cards and more.

Reliable Quality

Adopt thermal dye-sublimation printing technology with high definition

With better card printing capability continuously, saving-time effort

Simple operation interface and easy to use

Low noise in printing process

High printing speed engine

Features

Available to set the direction of card input & output

Automatic single-sided card printing

Support manual card feeding

Creative design
Keep improving

Driver: support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016,Linux,Mac OS

Card design software: ICARDE, support Windows XP/7/8/10/11

Concise design, friendly operation, powerful function

Databases connection available, completely independent intellectual property rights

Designed for large quantity & low cost printing

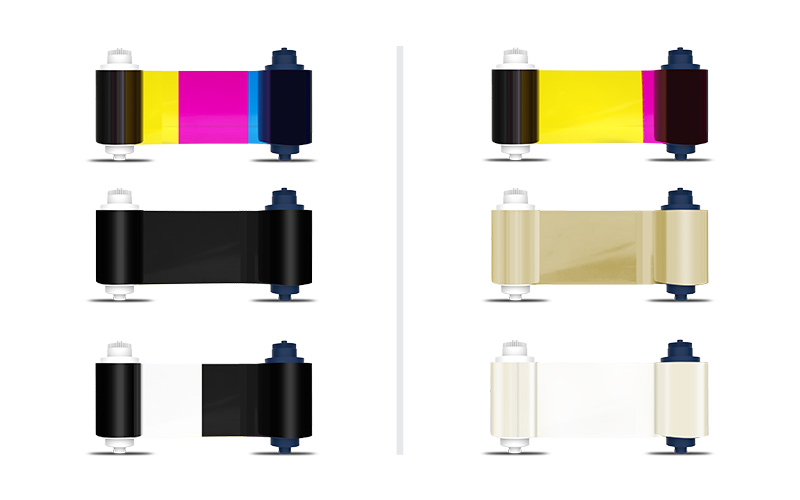

Full panel YMCKO ribbon: 100 prints/roll, 300 prints/roll

1/2 panel ymcKO ribbon:450 prints/roll

Black ribbon: 100m × 60mm, 200m × 60mm

Monochrome ribbon(gold/silver/white/red/ blue): 100m × 60mm

KO ribbon: 500 prints/roll

Anti-counterfeit Invisible UV ribbon: 100m × 60mm

Multi-functional module(optional) to support different card-encoding and printing

Dual interface card encoding module

Contactless ID Card encoding module

UHF chip card encoding module

Magnetic stripe card encoding module

Model	S16/Desktop Single-sided Card Printer
Specifications	293 × 174 × 211.6 (mm)
N.W	4.9Kg without input and output hopper

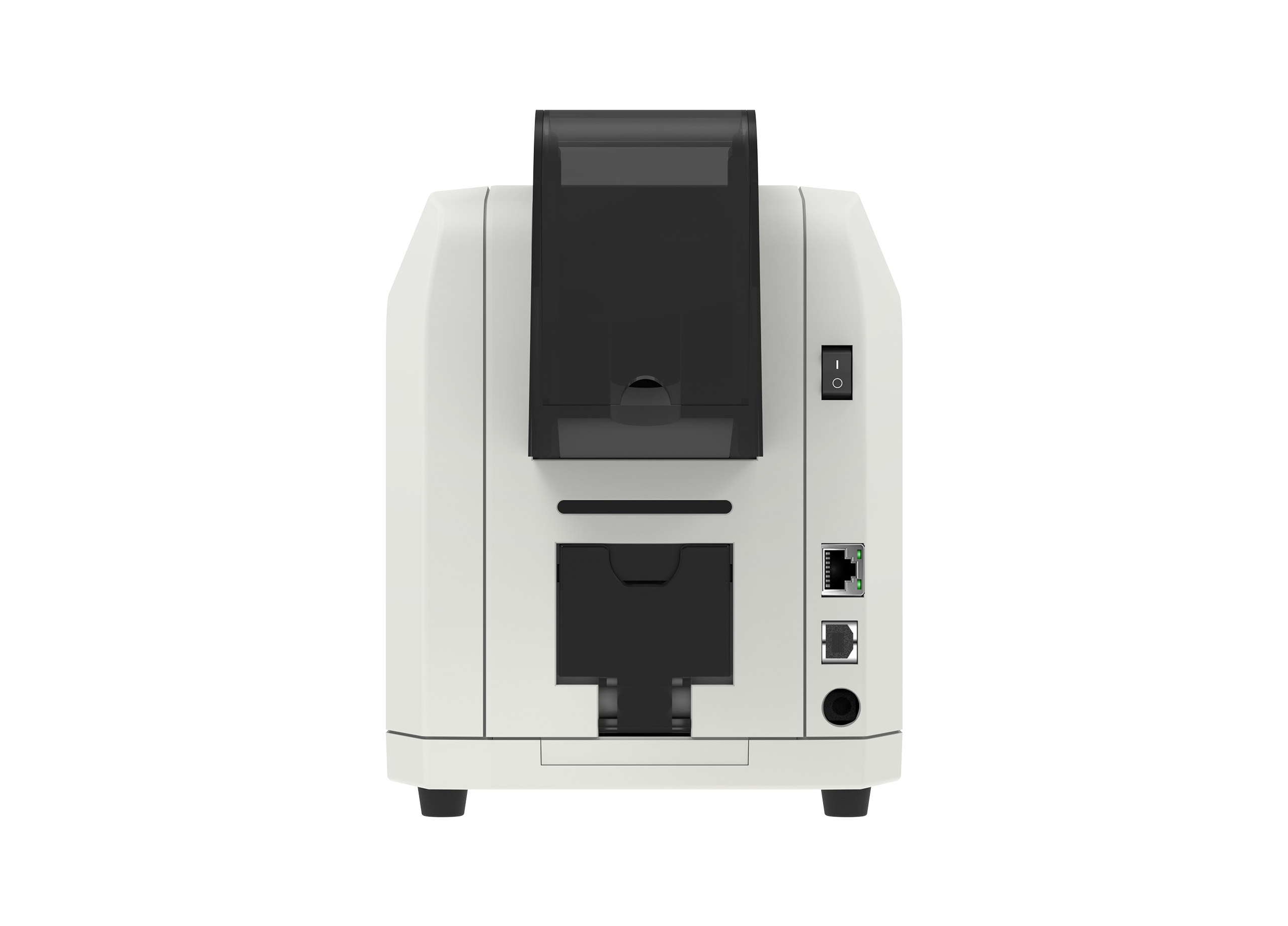

Interfaces	USB & Ethernet
Input Capacity	100 cards
Output Capacity	50 cards
Print Speed	Monochrome printing: 3~5s per card (single-sided); YMCKO printing: 20s per card (single-sided)
Card Material	PVC/Composite PVC
Power	AC 100~240V, 50/60 Hz, DC 24-25.5V, 2.7 A
Print Dimension	ISO CR80 (53.98mm×85.60mm), edge-to-edge printing
Print Resolution	300 dpi x 300 dpi ，300 dpi × 600 dpi ，300 dpi × 1200 dpi
Memory	128MB
Print Method	Dye sublimation (Direct-to-Card)
Card Thickness	0.3 - 1.05mm

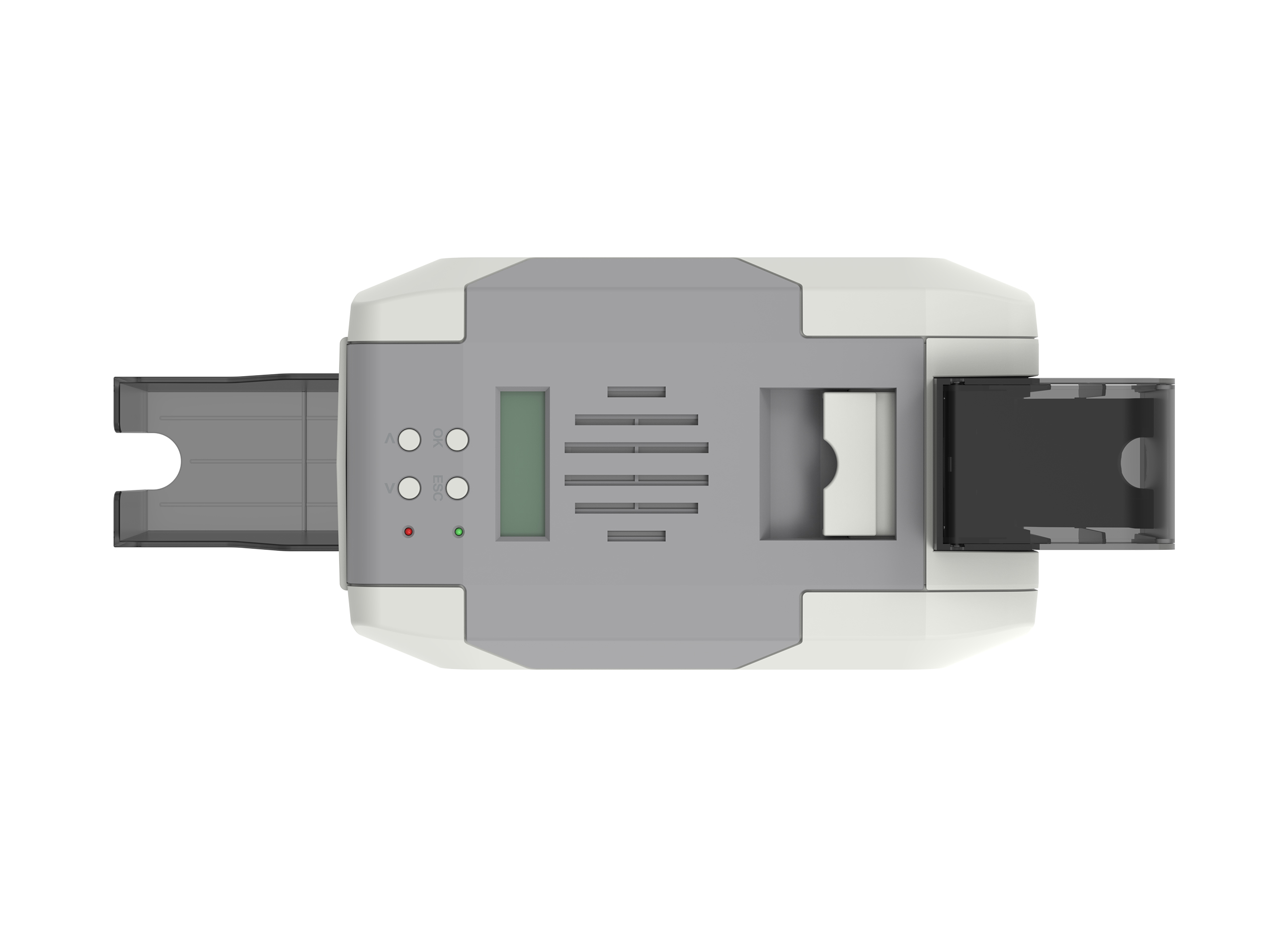

LCM Display	Chinese: 8 characters per line, 2 lines / English: 16 characters per line, 4 lines / Multi-language
Operation System	Driver: Support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016, Linux, and NeoKylin, Kylin, UOS and other made-in-China operating system. Development Kit: Support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016, Linux, Mac OS, and NeoKylin, Kylin, UOS and other made-in-China Operating System Card Design Software: iCARDE card design software, support Windows XP/7/8/10/11 operating systems
Warranty	Card printer : 24 months (artificial damage excluded) / Print head: Replace one for free within 1 year (artificial damage excluded)
Operating Condition	Regular running temp.:15℃-30℃（59-86℉),20%-65% RH Non-condensing Lowest / Highest running temp.:0℃（32℉）/40℃（104℉），20%-65% RH Non-condensing
Storage Condition	Temp.: -5℃-70℃(23-158℉), 20%~70% RH non-condensing
